Decoiling Equipment

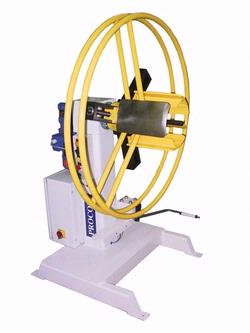

VD - Vertical Decoiler

Decoiling are slave by means of contact-less dancer arm control with variable speed drive. Most suitable for strips that are thick and broad. Contact-less controls are also available depending on application. Simple and easy to use with robust construction.


  • Speed monitoring via contact-less sensor
  • Forward/ Reverse rotation selectable
  • Over-pull limit protection
  • Power-Off interlock protection
  • Speed gain control adjustment
  • Easy operation
  • Best for thick and broad strips


  • Higher load and diameter on request
  • PU coating on roller
  • Paper Winder for collection of interlayer paper
  • With Straightener
  • Other loop control type
  • Other voltage

Technical Data

Model VD 100            VD 300            VD 500
Max coil diameter 800 mm         1000 mm         1000 mm
Rotation speed 0 - 21 rpm
Max load/ coil 100 kg             300 kg             500 kg
Expansion 280 - 520 mm
Max coil width 100 - 500 mm (to be specify)
Voltage single phase 220v 50/60hz
