Features
- Contact-less loop control via infra-red sensor
- Magnetic Paper Tensioning device with paper tear monitoring
- Forward and Reverse rotation
- Over-pull limit protection
- Double-strips horizontal winding
- 2-Strips x 4 Reels
- Speed regulation
Options
- Part counting feature
- Splice/ Joint Detector
- Winding without interlayer paper
- Other reel size and width on request
Technical Data

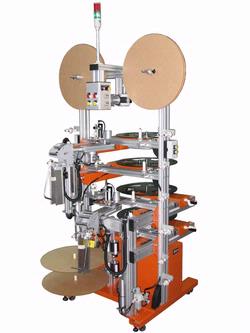

| Model | HR 824 |
| Max Reel OD. | 900 mm |
| Max strip width | 60 mm |
| Max load/ reel | 30 kg |
| Winding speed | 0 - 30 rpm |
| No. of strip | Double |
| No. of reel | 2 |
| Voltage | single phase 220v/ 50hz |
