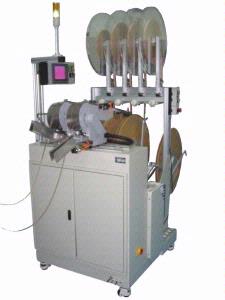

ARC 824- Multi-Fold Auto Change Reeler

The machine can take up to 2 strips at the same time. All 2 fold has its own independent controls which means the machine can also be use for single or double strip operation. At any times the completed reels can be unload while the press is still running.

The modular design are best for customize requirements where more reels could be configured if less strips is to be use. The threading of the stamped strip and reel change are fully automatic. Speed control via contact-less sensor with sample cut and individual built-in programmable counter and fork-barrier sensor. Best for unmanned operation.


  • Contact-less loop control via sensor
  • Programmable high-speed counter
  • Self-contained counting sensor
  • Automatic cutting
  • Automatic reel change
  • Eject sample at controlled length
  • Automatic threading of material
  • Speed regulation


  • Joint detector for reel to reel plating
  • Multiple sample strips
  • Quantity checking between joint
  • Magnetic paper tensioning device
  • Other reel size and width on request

Technical Data

Model ARC 824              ARC 848
Max Reel OD. 800 mm
Max width 50 mm
Max load/ reel 30 kg
Winding speed 0 - 25 m/min
No. of strip 2                          4
No. of reel 4                          8
Air supply 6 bar
Voltage 3 phase 200/220v 50/60hz
